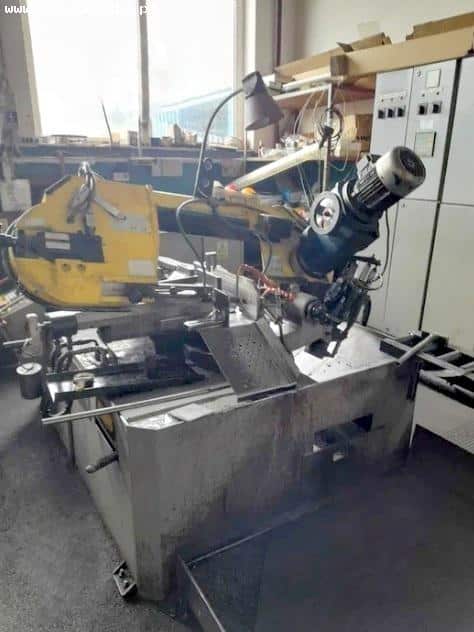

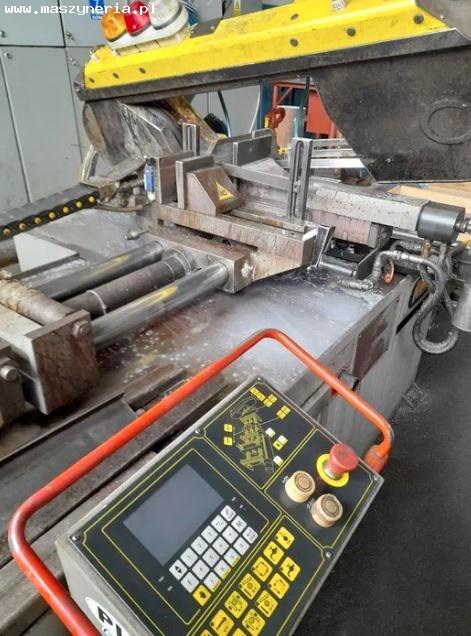

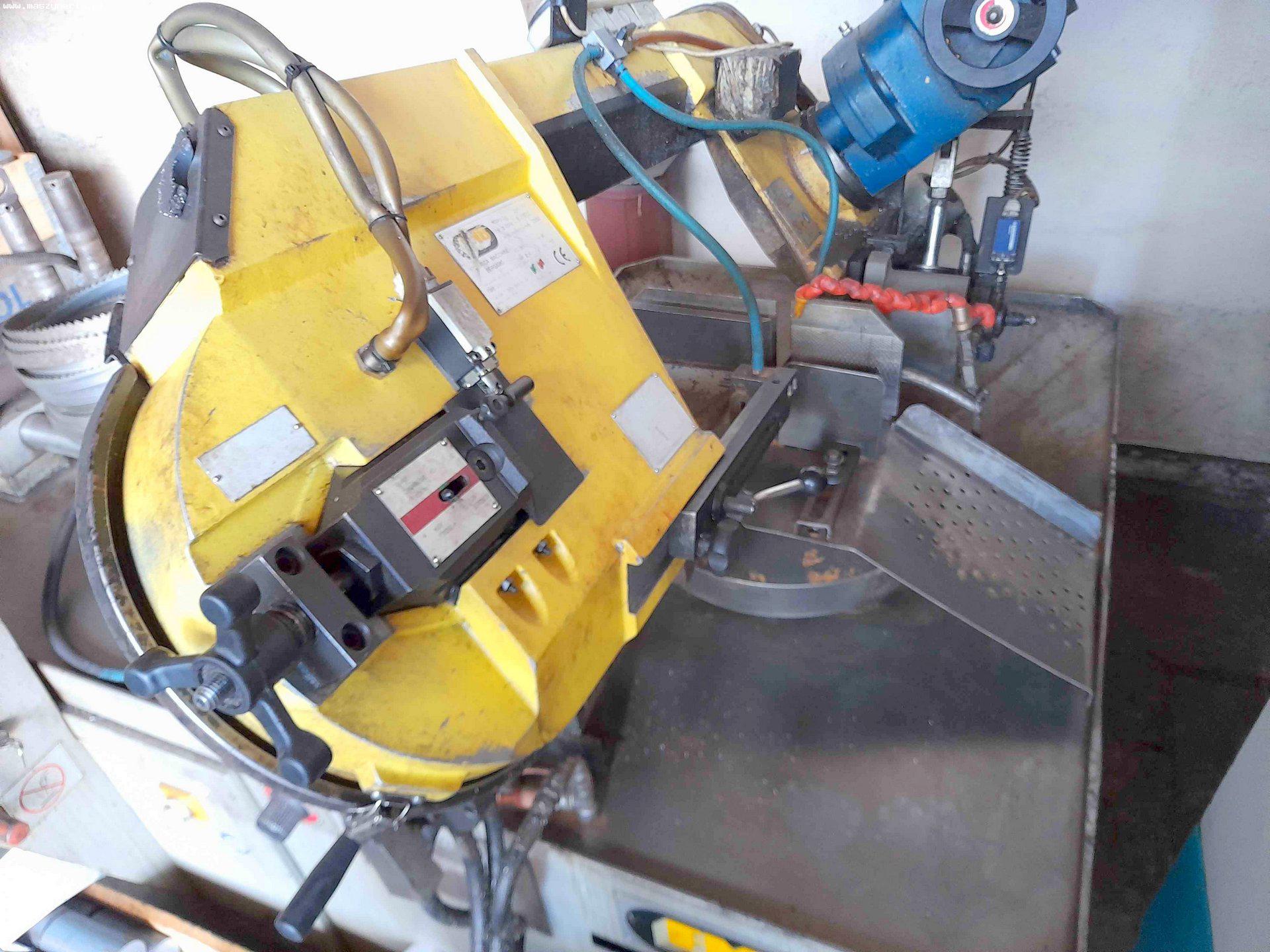

FMB JUPITER metal band saw was built in 2000 in Italy by FMB s.r.l.. The machine, which is an indispensable tool in any production facility, allows precise, fully automatic cutting of workpieces with different cross-sections. This process is performed by a high-quality saw blade with a length of 3180 mm, which is driven by a powerful electric motor with a stepless gearbox and transmission wheel. During machining, the rigid design eliminates any vibration, ensuring exceptional stability during even the most intense challenges. The FMB band saw underwent an upgrade in 2024, in which the control panel was replaced with a new one. The total weight of the machine is 1150 kg. Technical specifications of the FMB JUPITER band saw cutting angle: 0°-60° cutting capacity (0⁰, circle): 240 mm cutting capacity (0⁰, square): 240×240 mm cutting capacity (0⁰, rectangle): 280×240 mm cutting capacity (45⁰, circle): 200 mm cutting capacity (45⁰, square): 180×180 mm cutting capacity (45⁰, rectangle): 160×240 mm cutting capacity (60⁰, circle): 120 mm cutting capacity (60⁰, square): 120×120 mm cutting capacity (60⁰, rectangle): 120×120 mm saw blade dimensions: 3180 x 27 x 0.9 mm saw blade drive: electric motor variable speed transmission transmission wheel saw blade guidance: bearing guides carbide plates hydraulic vice clamp control panel variable speed transmission: VARMEC VAR 20/2 transmission speed: 16-80 rpm transmission power: 1,1 kW material travel: trapezoidal screw cutting height adjustment: adjustable microswitches main motor power: 2.4 kW power supply: 400 V; 50 Hz dimensions (L x W x H): 2600 x 1700 x 1500 mm weight of the FMB JUPITER machine: 1150 kg
